MFThread is an object that collects some number of Nodes of the same type which shares the same additional properties i.e. name, initial and boundary values and they are processed in the same way by functions during a pre-collision and collision steps. More...

#include <Thread.h>

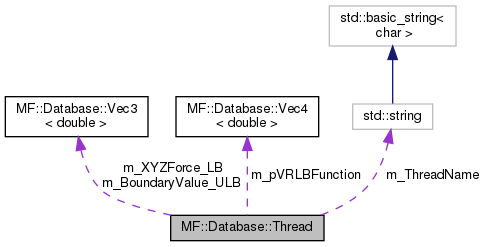

Collaboration diagram for MF::Database::Thread:

[legend]

Public Member Functions
	Thread (uint64_t NodeID, uint32_t NrOfNodes)

	~Thread ()=default

MF::Database::Node *	getPropTableNodePointer (const std::size_t &nodeNr, const uint8_t &LinkNr)

MF::Database::Node *	getSecPropTableNodePointer (const std::size_t &nodeNr, const uint8_t &LinkNr)
	Returns a pointer to a linked node from a propagation table. More...

MF::Database::Node *	getPropTableNodePointer (const MF::Database::Node *nodePointer, const uint8_t &LinkNr)
	Returns a pointer to a linked node from a second propagation table. More...

std::size_t	getNodeNr (const MF::Database::Node *nodePointer)
	Returns a pointer to a linked node from a propagation table. More...

MF::Database::Node &	getPropTableNodeRef (const std::size_t &nodeNr, const uint8_t &LinkNr)
	Converts a node pointer to a node number. More...

MF::Database::Node &	getSecondPropTableNodeRef (const std::size_t &nodeNr, const uint8_t &LinkNr)
	Returns a reference to a linked node from a propagation table. More...

void	setNodePtrInPropTable (const std::size_t &nodeNr, const uint8_t &LinkNr, MF::Database::Node *nodePtr)
	Returns a reference to a linked node from a second propagation table. More...

void	setNodePtrInSecondPropTable (const std::size_t &nodeNr, const uint8_t &LinkNr, MF::Database::Node *nodePtr)
	Sets a pointer to a linked node in a propagation table. More...

MF::Database::Node &	getPropTableNodeRef (const MF::Database::Node *nodePointer, const uint8_t &LinkNr)
	Sets a pointer to a linked node in a second propagation table. More...

MF::Database::Node &	getNodeRef (const std::size_t &nodeNr)
	Returns a reference to a linked node from a propagation table. More...

MF::Database::Node *	getNodePointer (const std::size_t &nodeNr)
	Returns a reference to node of nodeNr. More...

int32_t &	getNodeCoordX (const std::size_t &nodeNr)
	Returns a pointer to node of nodeNr. More...

int32_t &	getNodeCoordY (const std::size_t &nodeNr)
	Returns X coordinate of node nodeNr. More...

int32_t &	getNodeCoordZ (const std::size_t &nodeNr)
	Returns Y coordinate of node nodeNr. More...

void	setNodeCoordX (const std::size_t &nodeNr, const int32_t &X)
	Returns Z coordinate of node nodeNr. More...

void	setNodeCoordY (const std::size_t &nodeNr, const int32_t &Y)
	Sets X coordinate of node nodeNr. More...

void	setNodeCoordZ (const std::size_t &nodeNr, const int32_t &Z)
	Sets Y coordinate of node nodeNr. More...

uint32_t	getNumberOfNodes ()
	Sets Z coordinate of node nodeNr. More...

MF::Database::Node *	getLinkedNodePointer (const std::size_t &nodeNr, const uint8_t f)
	Returns the number of nodes in the thread. More...

void	DoCollisionOnly (const int &CPU_ThreadsNr)
	Invokes the collision function for all nodes. More...

void	DoPreCollisionOnly (const int &CPU_ThreadsNr)
	Invokes ONLY the pre-collision function for all nodes. More...

void	DoPreANDCollision (const int &CPU_ThreadsNr)
	Invokes the pre-collision and collision functions for all nodes. More...

void	DoPropagation (const int &CPU_ThreadsNr)
	Do the propagation for all nodes. More...

Static Public Member Functions
static std::shared_ptr< MF::Database::Thread >	New (const std::shared_ptr< MF::GU::LatticeParametersD3Q19 > &LatticeParameters_Ptr, uint64_t NodeID, uint32_t NrOfNodes)
	MFThread allocator. More...

Data Fields
std::shared_ptr< MF::Database::Thread >	m_Thread_Ptr {nullptr}
	Shared Ptr to MFThread. More...

std::string	m_ThreadName {""}
	Name of MFThread. More...

uint16_t	m_NodeType {0}
	Node type number. More...

uint16_t	m_uidThreadNr {0}
	MFThread number +1 from thread config file. Automatically created threads have uidThreadNr = 0, threads defined in thread_config file have uidThreadNr > 0 (+1);. More...

uint16_t	m_ThreadCount {0}
	For partitioned MFThreads, it is a part number. For non partitioned MFThreads = 0;. More...

uint8_t	m_ComponentNr {0}
	Component number for multicomponent systems. Max. 255. More...

uint8_t	m_PhaseNr {0}
	Phase number for multiphase flows. Max. 255. More...

bool	m_DoPreCollision {false}
	Flag for pre-collision stage. If true, thread is processed during pre-collision stage. More...

bool	m_DoCollision {false}
	Flag for collision stage. If true, thread is processed during collision stage. More...

bool	m_DoPropagation {true}
	Flag for propagation stage. If true, thread is processed during propagation stage. More...

bool	m_IsInletBalanceSurface {false}
	Flag used during post-processing stage. If true, nodes lie on the inlet surface. Value used for manual calculations of mean velocity and mass balance. More...

bool	m_IsOutletBalanceSurface {false}
	Flag used during post-processing stage. If true, nodes lie on the outlet surface. Value used for manual calculations of mean velocity and mass balance. More...

MF::Database::Vec3< double >	m_BoundaryValue_ULB {0, 0, 0}
	Initial or boundary value of LB velocity (x,y,z). More...

double	m_BoundaryValue_RhoLB {1.0}
	Initial or boundary value of Rho LB. More...

MF::Database::Vec3< double >	m_XYZForce_LB {0.0,0.0,0.0}
	Components X, Y, Z of the volumetric force, e.g. gravitational force [N/m3]. More...

void(*	m_pBoundaryFunction )(MF::Database::Node *)

MF::Database::Vec4< double >(*	m_pVRLBFunction )(const MF::Database::Node *)
	Boundary function pointer. More...

void(*	m_pColideFunc )(MF::Database::Node *)
	Velocity and rho function pointer. More...

std::shared_ptr< std::vector< MF::Database::Node > >	m_NodeArray_Ptr {nullptr}
	< Collision function pointer. More...

std::shared_ptr< NodePropArray >	m_PropagationTable_Ptr {nullptr}
	Propagation table of pointers to nodes. First half. More...

std::shared_ptr< NodePropArray >	m_SecondHalfPropagationTable_Ptr {nullptr}
	Propagation table of pointers to nodes. Second half. More...

std::shared_ptr< std::vector< MF::Database::Vec3< int32_t > > >	m_Coordinate_Ptr = {nullptr}
	Original nodes coordinates in a sparse geometry. More...

Static Public Attributes
static std::shared_ptr< MF::GU::LatticeParametersD3Q19 >	m_LatticeParameters_Ptr
	Lattice parameters shared pointer. More...

Detailed Description

MFThread is an object that collects some number of Nodes of the same type which shares the same additional properties i.e. name, initial and boundary values and they are processed in the same way by functions during a pre-collision and collision steps.

Pointers to those functions are kept by the MFThread object. Nodes are stored in a std::vector<Node> type dense array.

Parameters

NodeEncTypeID	The combined nodeType + MFThread number (+1).
NrOfNodes	The number of nodes that belongs to thread.

Note: Each computational Node has to belong to exactly one MFThread.

Definition at line 37 of file Thread.h.

Constructor & Destructor Documentation

◆ Thread()

MF::Database::Thread::Thread	(	uint64_t	NodeID,
		uint32_t	NrOfNodes
	)

inline

Definition at line 39 of file Thread.h.

References m_ComponentNr, m_Coordinate_Ptr, m_NodeArray_Ptr, m_NodeType, m_PhaseNr, m_PropagationTable_Ptr, m_SecondHalfPropagationTable_Ptr, m_ThreadCount, m_uidThreadNr, MF::GB::NodeID::Node, MF::GB::NodeID::node_id, MF::GB::NodeID::NodeID, and ~Thread().

                                                         {
                 MF::GB::NodeID nodeTMP;
                 nodeTMP.node_id.NodeID = NodeID;
                 m_NodeArray_Ptr = std::make_shared<std::vector<MF::Database::Node>>(NrOfNodes);
                 m_PropagationTable_Ptr = std::make_shared<NodePropArray>(NrOfNodes);
                 m_SecondHalfPropagationTable_Ptr = std::make_shared<NodePropArray>(NrOfNodes);
                 m_Coordinate_Ptr = std::make_shared<std::vector<MF::Database::Vec3<int32_t>>>(NrOfNodes);
                 m_NodeType = nodeTMP.node_id.Node.nodeType;
                 m_uidThreadNr = nodeTMP.node_id.Node.uidThreadNr;
                 m_ThreadCount = nodeTMP.node_id.Node.ThreadCount;
                 m_ComponentNr = nodeTMP.node_id.Node.ComponentNr;
                 m_PhaseNr = nodeTMP.node_id.Node.PhaseNr; };

◆ ~Thread()

MF::Database::Thread::~Thread ( )

default

Referenced by Thread().

Member Function Documentation

◆ DoCollisionOnly()

void MF::Database::Thread::DoCollisionOnly ( const int & CPU_ThreadsNr )

inline

Invokes the collision function for all nodes.

Parameters

CPU_ThreadsNr The number of CPU thread to be used.

Note: Function is parallelized by means of OpenMP.

Definition at line 134 of file Thread.h.

References m_NodeArray_Ptr.

                                                                   {
                 std::size_t node;
                 omp_set_num_threads(CPU_ThreadsNr);
                 #pragma omp parallel for default(none) schedule(guided) //OpenMP compilation directive
                 for (node = 0; node < m_NodeArray_Ptr->size(); node++) {
                     (*m_pColideFunc)(&(*m_NodeArray_Ptr)[node]);
                 }
             };

◆ DoPreANDCollision()

void MF::Database::Thread::DoPreANDCollision ( const int & CPU_ThreadsNr )

inline

Invokes the pre-collision and collision functions for all nodes.

Parameters

CPU_ThreadsNr The number of CPU thread to be used.

Note: Function is parallelized by means of OpenMP.

Definition at line 160 of file Thread.h.

References m_NodeArray_Ptr.

                                                                     {
                 std::size_t node;
                 omp_set_num_threads(CPU_ThreadsNr); // Number of CPU threads to use
                 #pragma omp parallel for default(none) schedule(guided) //OpenMP compilation directive
                 for (node = 0; node < m_NodeArray_Ptr->size(); node++) {
                     (*m_pBoundaryFunction)(&(*m_NodeArray_Ptr)[node]);
                     (*m_pColideFunc)(&(*m_NodeArray_Ptr)[node]);
                 }
             };

◆ DoPreCollisionOnly()

void MF::Database::Thread::DoPreCollisionOnly ( const int & CPU_ThreadsNr )

inline

Invokes ONLY the pre-collision function for all nodes.

Parameters

CPU_ThreadsNr The number of CPU thread to be used.

Note: Function is parallelized by means of OpenMP.

Definition at line 147 of file Thread.h.

References m_NodeArray_Ptr.

                                                                      {
                 std::size_t node;
                 omp_set_num_threads(CPU_ThreadsNr); // Number of CPU threads to use
                 #pragma omp parallel for default(none) schedule(guided) //OpenMP compilation directive
                 for (node = 0; node < m_NodeArray_Ptr->size(); node++) {
                     (*m_pBoundaryFunction)(&(*m_NodeArray_Ptr)[node]);
                 }
             };

◆ DoPropagation()

void MF::Database::Thread::DoPropagation ( const int & CPU_ThreadsNr )

inline

Do the propagation for all nodes.

Parameters

CPU_ThreadsNr The number of CPU thread to be used.

Note: Function is parallelized by means of OpenMP.

Definition at line 174 of file Thread.h.

References getPropTableNodePointer(), getPropTableNodeRef(), m_NodeArray_Ptr, and MFQ19_H.

                                                                 {
                 std::size_t node;
                 uint64_t LinkNr;
                 omp_set_num_threads(CPU_ThreadsNr); // Number of CPU threads to use
                 #pragma omp parallel for schedule(static) default(none) private(LinkNr)//OpenMP compilation directive
                 for (node = 0; node < m_NodeArray_Ptr->size(); node++) {
                     for (LinkNr = 0; LinkNr < MFQ19_H; LinkNr++) {
                         if (getPropTableNodePointer(node, LinkNr) != nullptr) {
                             const auto link1 = m_LatticeParameters_Ptr->SwapDirections[LinkNr][0];
                             const auto link2 = m_LatticeParameters_Ptr->SwapDirections[LinkNr][1];
                             std::swap(getPropTableNodeRef(node, LinkNr).FQ19[link1],(*m_NodeArray_Ptr)[node].FQ19[link2]);
                         }
                     }
                 }
             };

◆ getLinkedNodePointer()

MF::Database::Node* MF::Database::Thread::getLinkedNodePointer	(	const std::size_t &	nodeNr,
		const uint8_t	f
	)

inline

Returns the number of nodes in the thread.

Returns pointer to neighboring node in direction f.

Extracts data from propagation table and second propagation table.

Parameters

nodeNr	Node number.
f	Direction f(i).

Definition at line 116 of file Thread.h.

References getNodePointer(), getPropTableNodePointer(), getSecPropTableNodePointer(), MFQ19_H, and MF::GU::LatticeParametersD3Q19::SwapDirections.

                                                                                                  {
                 for (auto k = 0; k < MFQ19_H; k++){
                     auto direction1 = MF::GU::LatticeParametersD3Q19::SwapDirections[k][0];
                     auto direction2 = MF::GU::LatticeParametersD3Q19::SwapDirections[k][1];
                     if (f == direction1)
                         return getPropTableNodePointer(nodeNr, k);
                     else if (f == direction2)
                         return getSecPropTableNodePointer(nodeNr, k);
                     else if (f == 0)
                         return getNodePointer(nodeNr);
                 }
                 return nullptr;
             };

◆ getNodeCoordX()

int32_t& MF::Database::Thread::getNodeCoordX ( const std::size_t & nodeNr )

inline

Returns a pointer to node of nodeNr.

Definition at line 104 of file Thread.h.

104 {return (*m_Coordinate_Ptr)[nodeNr].x;};

MF::Database::Thread::m_Coordinate_Ptr

std::shared_ptr< std::vector< MF::Database::Vec3< int32_t > > > m_Coordinate_Ptr

Original nodes coordinates in a sparse geometry.

Definition: Thread.h:90

◆ getNodeCoordY()

int32_t& MF::Database::Thread::getNodeCoordY ( const std::size_t & nodeNr )

inline

Returns X coordinate of node nodeNr.

Definition at line 105 of file Thread.h.

105 {return (*m_Coordinate_Ptr)[nodeNr].y;};

MF::Database::Thread::m_Coordinate_Ptr

std::shared_ptr< std::vector< MF::Database::Vec3< int32_t > > > m_Coordinate_Ptr

Original nodes coordinates in a sparse geometry.

Definition: Thread.h:90

◆ getNodeCoordZ()

int32_t& MF::Database::Thread::getNodeCoordZ ( const std::size_t & nodeNr )

inline

Returns Y coordinate of node nodeNr.

Definition at line 106 of file Thread.h.

106 {return (*m_Coordinate_Ptr)[nodeNr].z;};

MF::Database::Thread::m_Coordinate_Ptr

std::shared_ptr< std::vector< MF::Database::Vec3< int32_t > > > m_Coordinate_Ptr

Original nodes coordinates in a sparse geometry.

Definition: Thread.h:90

◆ getNodeNr()

std::size_t MF::Database::Thread::getNodeNr ( const MF::Database::Node * nodePointer )

inline

Returns a pointer to a linked node from a propagation table.

Definition at line 96 of file Thread.h.

References m_NodeArray_Ptr.

96 {return nodePointer - m_NodeArray_Ptr->data();};

MF::Database::Thread::m_NodeArray_Ptr

std::shared_ptr< std::vector< MF::Database::Node > > m_NodeArray_Ptr

< Collision function pointer.

Definition: Thread.h:87

◆ getNodePointer()

MF::Database::Node* MF::Database::Thread::getNodePointer ( const std::size_t & nodeNr )

inline

Returns a reference to node of nodeNr.

Definition at line 103 of file Thread.h.

Referenced by getLinkedNodePointer().

103 {return &(*m_NodeArray_Ptr)[nodeNr];};

◆ getNodeRef()

MF::Database::Node& MF::Database::Thread::getNodeRef ( const std::size_t & nodeNr )

inline

Returns a reference to a linked node from a propagation table.

Definition at line 102 of file Thread.h.

References m_NodeArray_Ptr.

102 {return (*m_NodeArray_Ptr)[nodeNr];};

MF::Database::Thread::m_NodeArray_Ptr

std::shared_ptr< std::vector< MF::Database::Node > > m_NodeArray_Ptr

< Collision function pointer.

Definition: Thread.h:87

◆ getNumberOfNodes()

uint32_t MF::Database::Thread::getNumberOfNodes ( )

inline

Sets Z coordinate of node nodeNr.

Definition at line 110 of file Thread.h.

References m_NodeArray_Ptr.

110 {return m_NodeArray_Ptr->size();};

MF::Database::Thread::m_NodeArray_Ptr

std::shared_ptr< std::vector< MF::Database::Node > > m_NodeArray_Ptr

< Collision function pointer.

Definition: Thread.h:87

◆ getPropTableNodePointer() [1/2]

MF::Database::Node* MF::Database::Thread::getPropTableNodePointer	(	const std::size_t &	nodeNr,
		const uint8_t &	LinkNr
	)

inline

Definition at line 93 of file Thread.h.

References m_PropagationTable_Ptr.

Referenced by DoPropagation(), and getLinkedNodePointer().

93 {return (*m_PropagationTable_Ptr)[nodeNr][LinkNr];};

MF::Database::Thread::m_PropagationTable_Ptr

std::shared_ptr< NodePropArray > m_PropagationTable_Ptr

Propagation table of pointers to nodes. First half.

Definition: Thread.h:88

◆ getPropTableNodePointer() [2/2]

MF::Database::Node* MF::Database::Thread::getPropTableNodePointer	(	const MF::Database::Node *	nodePointer,
		const uint8_t &	LinkNr
	)

inline

Returns a pointer to a linked node from a second propagation table.

Definition at line 95 of file Thread.h.

References m_NodeArray_Ptr, and m_PropagationTable_Ptr.

95 {std::size_t nodeNr = nodePointer - m_NodeArray_Ptr->data(); return (*m_PropagationTable_Ptr)[nodeNr][LinkNr];};

MF::Database::Thread::m_PropagationTable_Ptr

std::shared_ptr< NodePropArray > m_PropagationTable_Ptr

Propagation table of pointers to nodes. First half.

Definition: Thread.h:88

MF::Database::Thread::m_NodeArray_Ptr

std::shared_ptr< std::vector< MF::Database::Node > > m_NodeArray_Ptr

< Collision function pointer.

Definition: Thread.h:87

◆ getPropTableNodeRef() [1/2]

MF::Database::Node& MF::Database::Thread::getPropTableNodeRef	(	const std::size_t &	nodeNr,
		const uint8_t &	LinkNr
	)

inline

Converts a node pointer to a node number.

Definition at line 97 of file Thread.h.

Referenced by DoPropagation().

97 {return *(*m_PropagationTable_Ptr)[nodeNr][LinkNr];};

◆ getPropTableNodeRef() [2/2]

MF::Database::Node& MF::Database::Thread::getPropTableNodeRef	(	const MF::Database::Node *	nodePointer,
		const uint8_t &	LinkNr
	)

inline

Sets a pointer to a linked node in a second propagation table.

Definition at line 101 of file Thread.h.

References m_NodeArray_Ptr.

101 {std::size_t nodeNr = nodePointer - m_NodeArray_Ptr->data(); return *(*m_PropagationTable_Ptr)[nodeNr][LinkNr];};

MF::Database::Thread::m_NodeArray_Ptr

std::shared_ptr< std::vector< MF::Database::Node > > m_NodeArray_Ptr

< Collision function pointer.

Definition: Thread.h:87

◆ getSecondPropTableNodeRef()

MF::Database::Node& MF::Database::Thread::getSecondPropTableNodeRef	(	const std::size_t &	nodeNr,
		const uint8_t &	LinkNr
	)

inline

Returns a reference to a linked node from a propagation table.

Definition at line 98 of file Thread.h.

98 {return *(*m_PropagationTable_Ptr)[nodeNr][LinkNr];};

◆ getSecPropTableNodePointer()

MF::Database::Node* MF::Database::Thread::getSecPropTableNodePointer	(	const std::size_t &	nodeNr,
		const uint8_t &	LinkNr
	)

inline

Returns a pointer to a linked node from a propagation table.

Definition at line 94 of file Thread.h.

References m_SecondHalfPropagationTable_Ptr.

Referenced by getLinkedNodePointer().

94 {return (*m_SecondHalfPropagationTable_Ptr)[nodeNr][LinkNr];};

MF::Database::Thread::m_SecondHalfPropagationTable_Ptr

std::shared_ptr< NodePropArray > m_SecondHalfPropagationTable_Ptr

Propagation table of pointers to nodes. Second half.

Definition: Thread.h:89

◆ New()

static std::shared_ptr<MF::Database::Thread> MF::Database::Thread::New	(	const std::shared_ptr< MF::GU::LatticeParametersD3Q19 > &	LatticeParameters_Ptr,
		uint64_t	NodeID,
		uint32_t	NrOfNodes
	)

inlinestatic

MFThread allocator.

Allocates shared pointer to created MFThread object.

Parameters

NodeID	The combined nodeType + MFThread number (+1).
NrOfNodes	The number of nodes that belongs to thread.

Definition at line 58 of file Thread.h.

References m_LatticeParameters_Ptr.

Referenced by MF::Database::ThreadArray::NewThread().

                                                                                                                                                                     {
                 auto Thread_Ptr = std::make_shared<MF::Database::Thread>(NodeID, NrOfNodes);
                 Thread_Ptr->m_Thread_Ptr = Thread_Ptr;
                 MF::Database::Thread::m_LatticeParameters_Ptr = LatticeParameters_Ptr;
                 return Thread_Ptr;
             }

◆ setNodeCoordX()

void MF::Database::Thread::setNodeCoordX	(	const std::size_t &	nodeNr,
		const int32_t &	X
	)

inline

Returns Z coordinate of node nodeNr.

Definition at line 107 of file Thread.h.

107 {(*m_Coordinate_Ptr)[nodeNr].x = X;};

◆ setNodeCoordY()

void MF::Database::Thread::setNodeCoordY	(	const std::size_t &	nodeNr,
		const int32_t &	Y
	)

inline

Sets X coordinate of node nodeNr.

Definition at line 108 of file Thread.h.

108 {(*m_Coordinate_Ptr)[nodeNr].y = Y;};

◆ setNodeCoordZ()

void MF::Database::Thread::setNodeCoordZ	(	const std::size_t &	nodeNr,
		const int32_t &	Z
	)

inline

Sets Y coordinate of node nodeNr.

Definition at line 109 of file Thread.h.

109 {(*m_Coordinate_Ptr)[nodeNr].z = Z;};

◆ setNodePtrInPropTable()

void MF::Database::Thread::setNodePtrInPropTable	(	const std::size_t &	nodeNr,
		const uint8_t &	LinkNr,
		MF::Database::Node *	nodePtr
	)

inline

Returns a reference to a linked node from a second propagation table.

Definition at line 99 of file Thread.h.

99 { (*m_PropagationTable_Ptr)[nodeNr][LinkNr] = nodePtr;};

◆ setNodePtrInSecondPropTable()

void MF::Database::Thread::setNodePtrInSecondPropTable	(	const std::size_t &	nodeNr,
		const uint8_t &	LinkNr,
		MF::Database::Node *	nodePtr
	)

inline

Sets a pointer to a linked node in a propagation table.

Definition at line 100 of file Thread.h.

100 { (*m_SecondHalfPropagationTable_Ptr)[nodeNr][LinkNr] = nodePtr;};

Field Documentation

◆ m_BoundaryValue_RhoLB

double MF::Database::Thread::m_BoundaryValue_RhoLB {1.0}

Initial or boundary value of Rho LB.

Definition at line 80 of file Thread.h.

◆ m_BoundaryValue_ULB

MF::Database::Vec3<double> MF::Database::Thread::m_BoundaryValue_ULB {0, 0, 0}

Initial or boundary value of LB velocity (x,y,z).

Definition at line 79 of file Thread.h.

◆ m_ComponentNr

uint8_t MF::Database::Thread::m_ComponentNr {0}

Component number for multicomponent systems. Max. 255.

Definition at line 71 of file Thread.h.

Referenced by Thread().

◆ m_Coordinate_Ptr

std::shared_ptr<std::vector<MF::Database::Vec3<int32_t> > > MF::Database::Thread::m_Coordinate_Ptr = {nullptr}

Original nodes coordinates in a sparse geometry.

Definition at line 90 of file Thread.h.

Referenced by Thread().

◆ m_DoCollision

bool MF::Database::Thread::m_DoCollision {false}

Flag for collision stage. If true, thread is processed during collision stage.

Definition at line 74 of file Thread.h.

◆ m_DoPreCollision

bool MF::Database::Thread::m_DoPreCollision {false}

Flag for pre-collision stage. If true, thread is processed during pre-collision stage.

Definition at line 73 of file Thread.h.

◆ m_DoPropagation

bool MF::Database::Thread::m_DoPropagation {true}

Flag for propagation stage. If true, thread is processed during propagation stage.

Definition at line 75 of file Thread.h.

◆ m_IsInletBalanceSurface

bool MF::Database::Thread::m_IsInletBalanceSurface {false}

Flag used during post-processing stage. If true, nodes lie on the inlet surface. Value used for manual calculations of mean velocity and mass balance.

Definition at line 76 of file Thread.h.

◆ m_IsOutletBalanceSurface

bool MF::Database::Thread::m_IsOutletBalanceSurface {false}

Flag used during post-processing stage. If true, nodes lie on the outlet surface. Value used for manual calculations of mean velocity and mass balance.

Definition at line 77 of file Thread.h.

◆ m_LatticeParameters_Ptr

std::shared_ptr<MF::GU::LatticeParametersD3Q19> MF::Database::Thread::m_LatticeParameters_Ptr

inlinestatic

Lattice parameters shared pointer.

Definition at line 65 of file Thread.h.

Referenced by New().

◆ m_NodeArray_Ptr

std::shared_ptr<std::vector<MF::Database::Node> > MF::Database::Thread::m_NodeArray_Ptr {nullptr}

< Collision function pointer.

Nodes array associated with the MFThread.

Definition at line 87 of file Thread.h.

Referenced by DoCollisionOnly(), DoPreANDCollision(), DoPreCollisionOnly(), DoPropagation(), getNodeNr(), getNodeRef(), getNumberOfNodes(), getPropTableNodePointer(), getPropTableNodeRef(), and Thread().

◆ m_NodeType

uint16_t MF::Database::Thread::m_NodeType {0}

Node type number.

Definition at line 68 of file Thread.h.

Referenced by Thread().

◆ m_pBoundaryFunction

void(* MF::Database::Thread::m_pBoundaryFunction) (MF::Database::Node *)

inline

Definition at line 83 of file Thread.h.

83 {nullptr};

◆ m_pColideFunc

void(* MF::Database::Thread::m_pColideFunc) (MF::Database::Node *)

inline

Velocity and rho function pointer.

Definition at line 85 of file Thread.h.

85 {nullptr};

◆ m_PhaseNr

uint8_t MF::Database::Thread::m_PhaseNr {0}

Phase number for multiphase flows. Max. 255.

Definition at line 72 of file Thread.h.

Referenced by Thread().

◆ m_PropagationTable_Ptr

std::shared_ptr<NodePropArray> MF::Database::Thread::m_PropagationTable_Ptr {nullptr}

Propagation table of pointers to nodes. First half.

Definition at line 88 of file Thread.h.

Referenced by getPropTableNodePointer(), and Thread().

◆ m_pVRLBFunction

MF::Database::Vec4<double>(* MF::Database::Thread::m_pVRLBFunction) (const MF::Database::Node *)

inline

Boundary function pointer.

Definition at line 84 of file Thread.h.

84 {nullptr};

◆ m_SecondHalfPropagationTable_Ptr

std::shared_ptr<NodePropArray> MF::Database::Thread::m_SecondHalfPropagationTable_Ptr {nullptr}

Propagation table of pointers to nodes. Second half.

Definition at line 89 of file Thread.h.

Referenced by getSecPropTableNodePointer(), and Thread().

◆ m_Thread_Ptr

std::shared_ptr<MF::Database::Thread> MF::Database::Thread::m_Thread_Ptr {nullptr}

Shared Ptr to MFThread.

Definition at line 66 of file Thread.h.

◆ m_ThreadCount

uint16_t MF::Database::Thread::m_ThreadCount {0}

For partitioned MFThreads, it is a part number. For non partitioned MFThreads = 0;.

Definition at line 70 of file Thread.h.

Referenced by Thread().

◆ m_ThreadName

std::string MF::Database::Thread::m_ThreadName {""}

Name of MFThread.

Definition at line 67 of file Thread.h.

◆ m_uidThreadNr

uint16_t MF::Database::Thread::m_uidThreadNr {0}

MFThread number +1 from thread config file. Automatically created threads have uidThreadNr = 0, threads defined in thread_config file have uidThreadNr > 0 (+1);.

Definition at line 69 of file Thread.h.

Referenced by Thread().

◆ m_XYZForce_LB

MF::Database::Vec3<double> MF::Database::Thread::m_XYZForce_LB {0.0,0.0,0.0}

Components X, Y, Z of the volumetric force, e.g. gravitational force [N/m3].

Definition at line 81 of file Thread.h.

The documentation for this class was generated from the following file:

/home/romek/CLionProjects/Microflow_3D_v1/source/MFDatabase/Thread.h

Public Member Functions

Static Public Member Functions

Data Fields

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Thread()

◆ ~Thread()

Member Function Documentation

◆ DoCollisionOnly()

◆ DoPreANDCollision()

◆ DoPreCollisionOnly()

◆ DoPropagation()

◆ getLinkedNodePointer()

◆ getNodeCoordX()

◆ getNodeCoordY()

◆ getNodeCoordZ()

◆ getNodeNr()

◆ getNodePointer()

◆ getNodeRef()

◆ getNumberOfNodes()

◆ getPropTableNodePointer() [1/2]

◆ getPropTableNodePointer() [2/2]

◆ getPropTableNodeRef() [1/2]

◆ getPropTableNodeRef() [2/2]

◆ getSecondPropTableNodeRef()

◆ getSecPropTableNodePointer()

◆ New()

◆ setNodeCoordX()

◆ setNodeCoordY()

◆ setNodeCoordZ()

◆ setNodePtrInPropTable()

◆ setNodePtrInSecondPropTable()

Field Documentation

◆ m_BoundaryValue_RhoLB

◆ m_BoundaryValue_ULB

◆ m_ComponentNr

◆ m_Coordinate_Ptr

◆ m_DoCollision

◆ m_DoPreCollision

◆ m_DoPropagation

◆ m_IsInletBalanceSurface

◆ m_IsOutletBalanceSurface

◆ m_LatticeParameters_Ptr

◆ m_NodeArray_Ptr

◆ m_NodeType

◆ m_pBoundaryFunction

◆ m_pColideFunc

◆ m_PhaseNr

◆ m_PropagationTable_Ptr

◆ m_pVRLBFunction

◆ m_SecondHalfPropagationTable_Ptr

◆ m_Thread_Ptr

◆ m_ThreadCount

◆ m_ThreadName

◆ m_uidThreadNr

◆ m_XYZForce_LB
