Astronaut

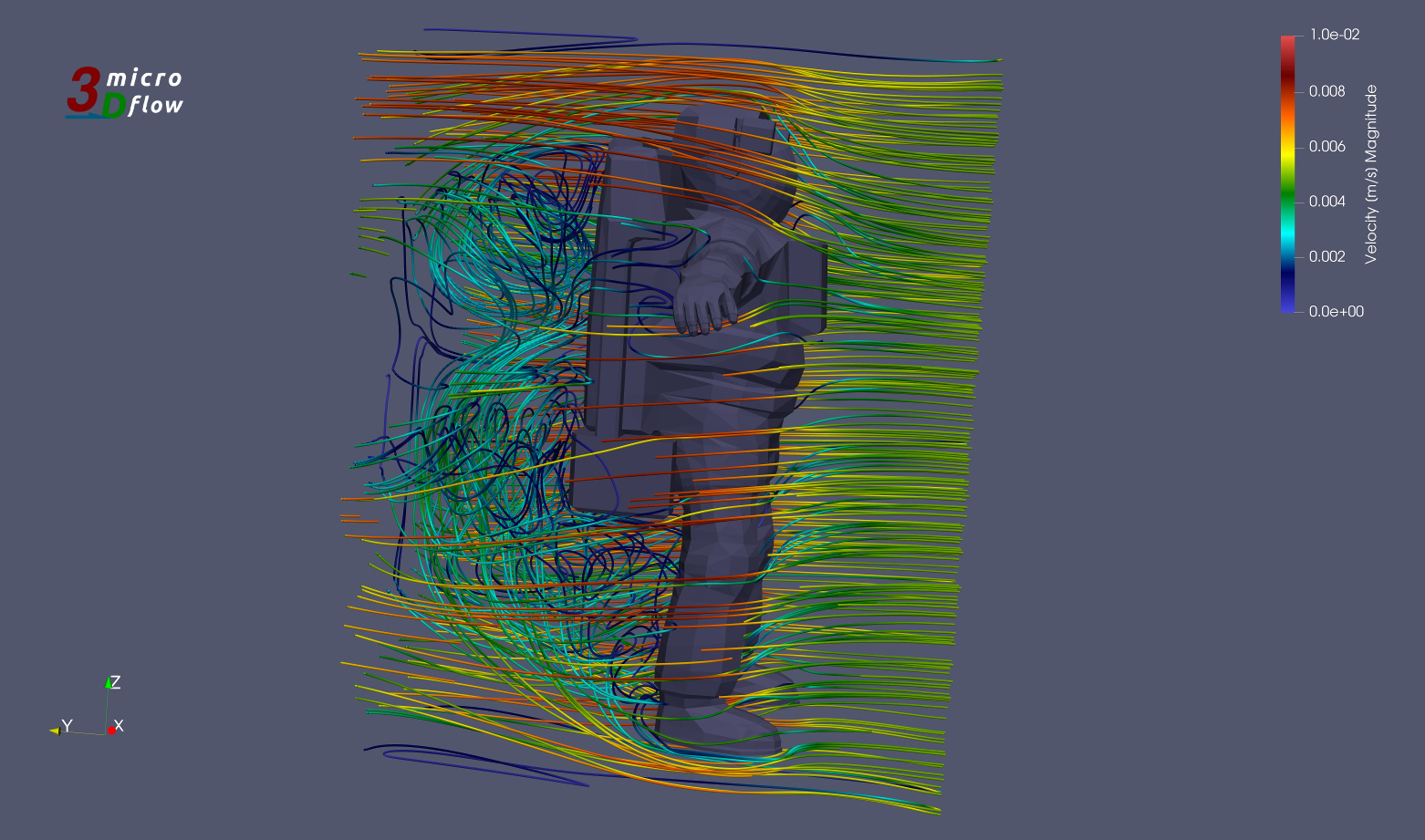

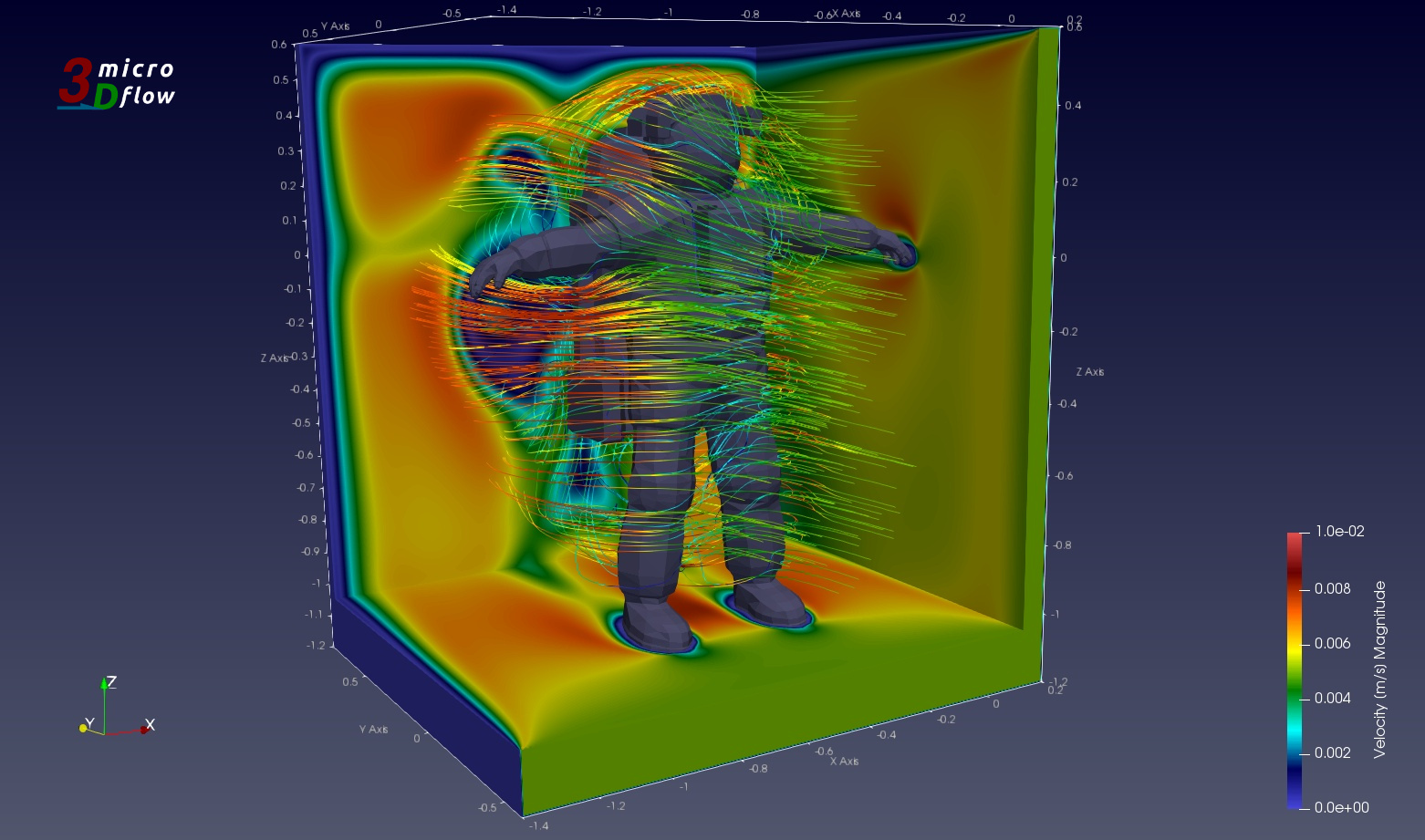

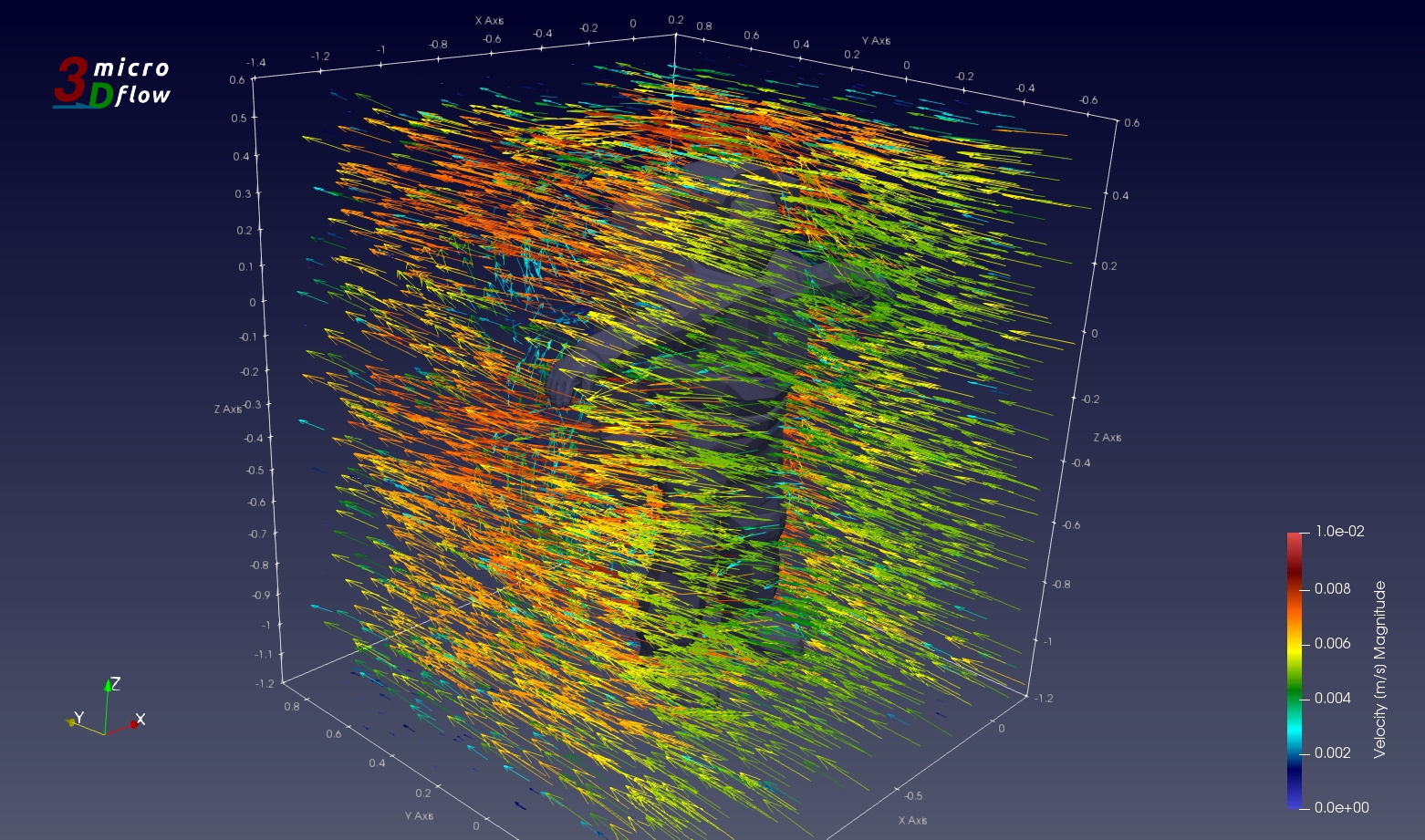

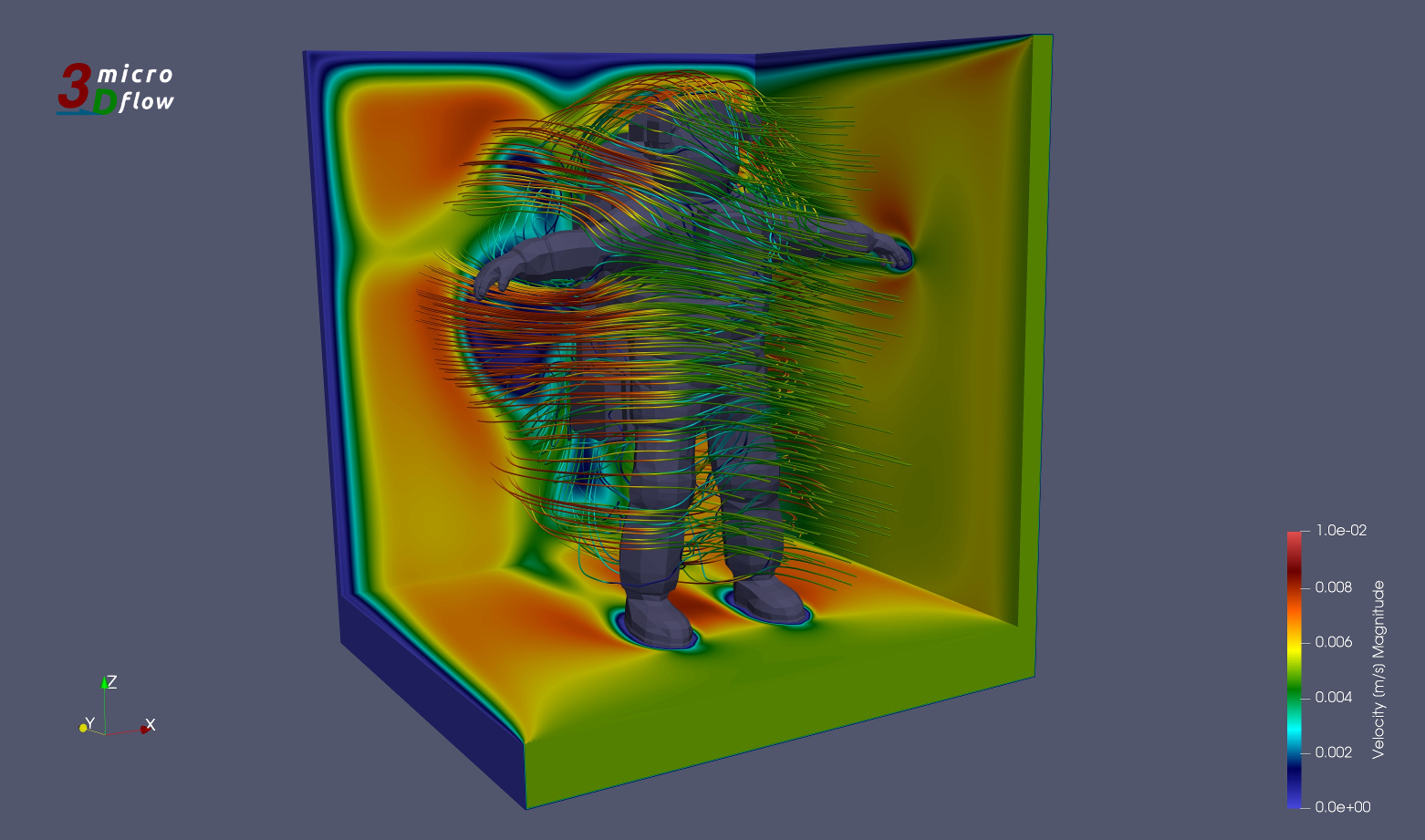

Results of simulation of airflow hydrodynamics around astronaut spacesuit.
The spacesuit geometry from NASA 3D open resources library.

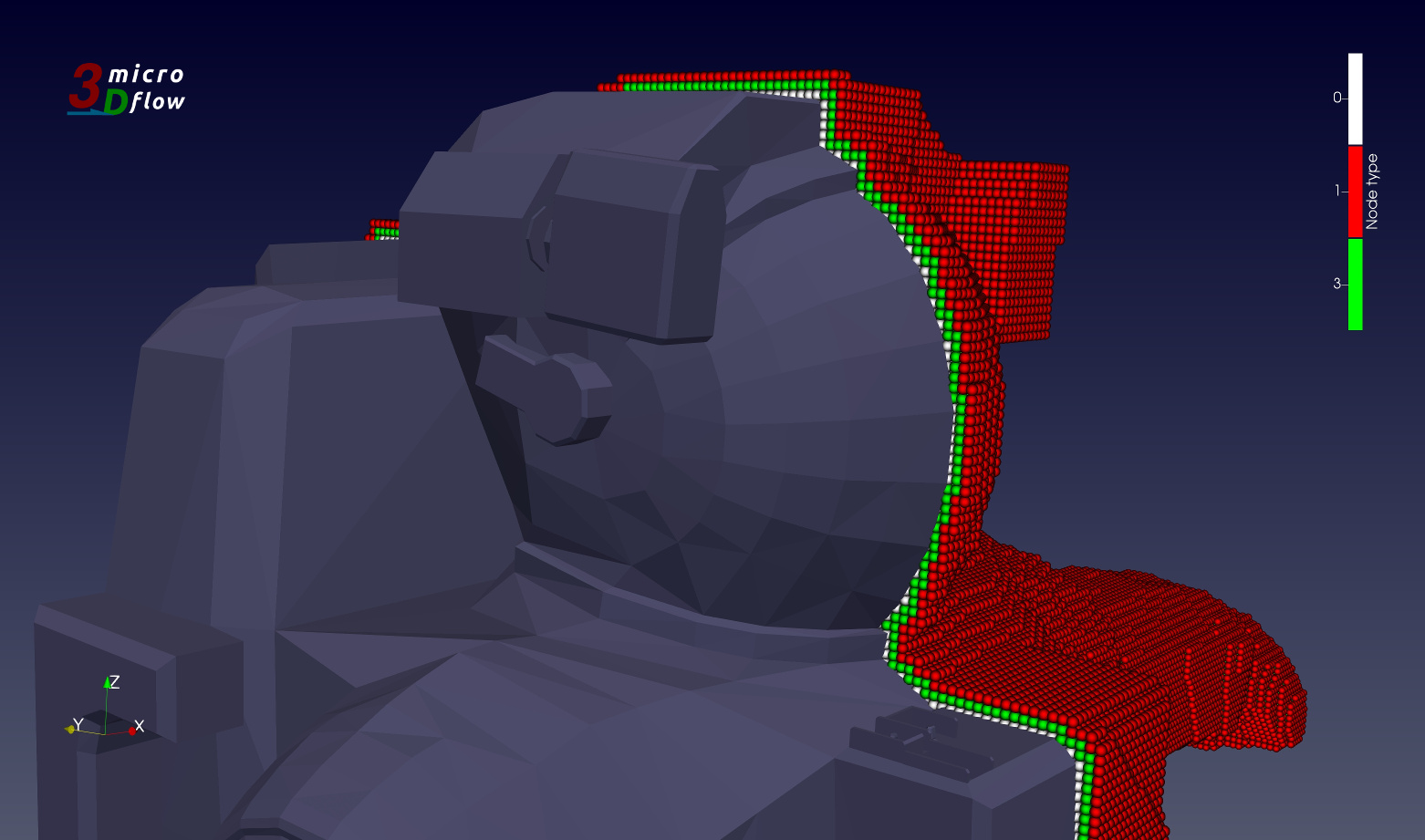

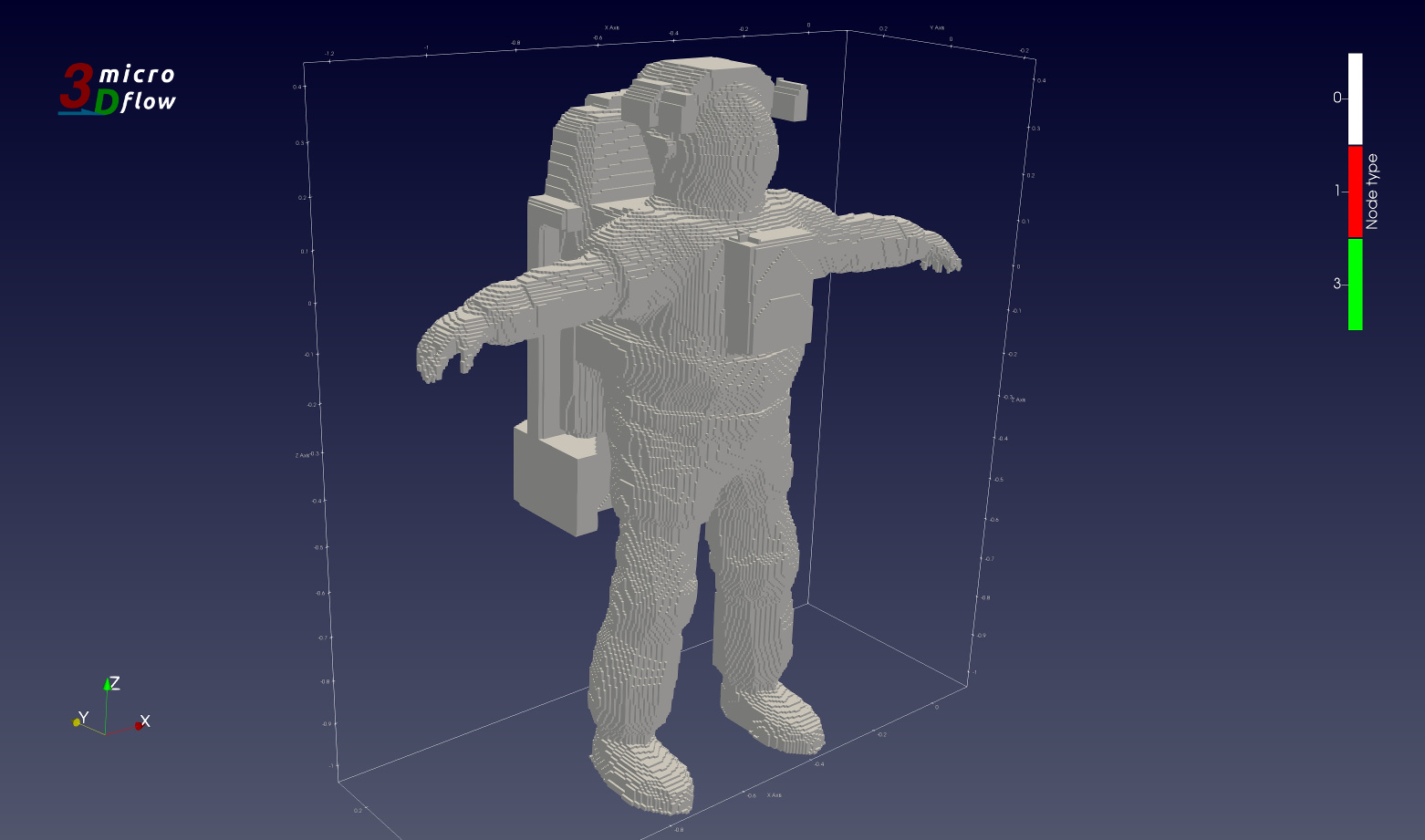

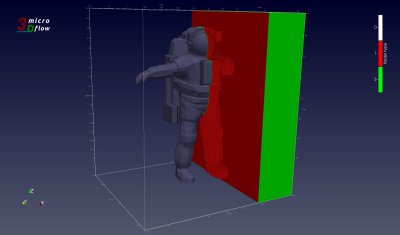

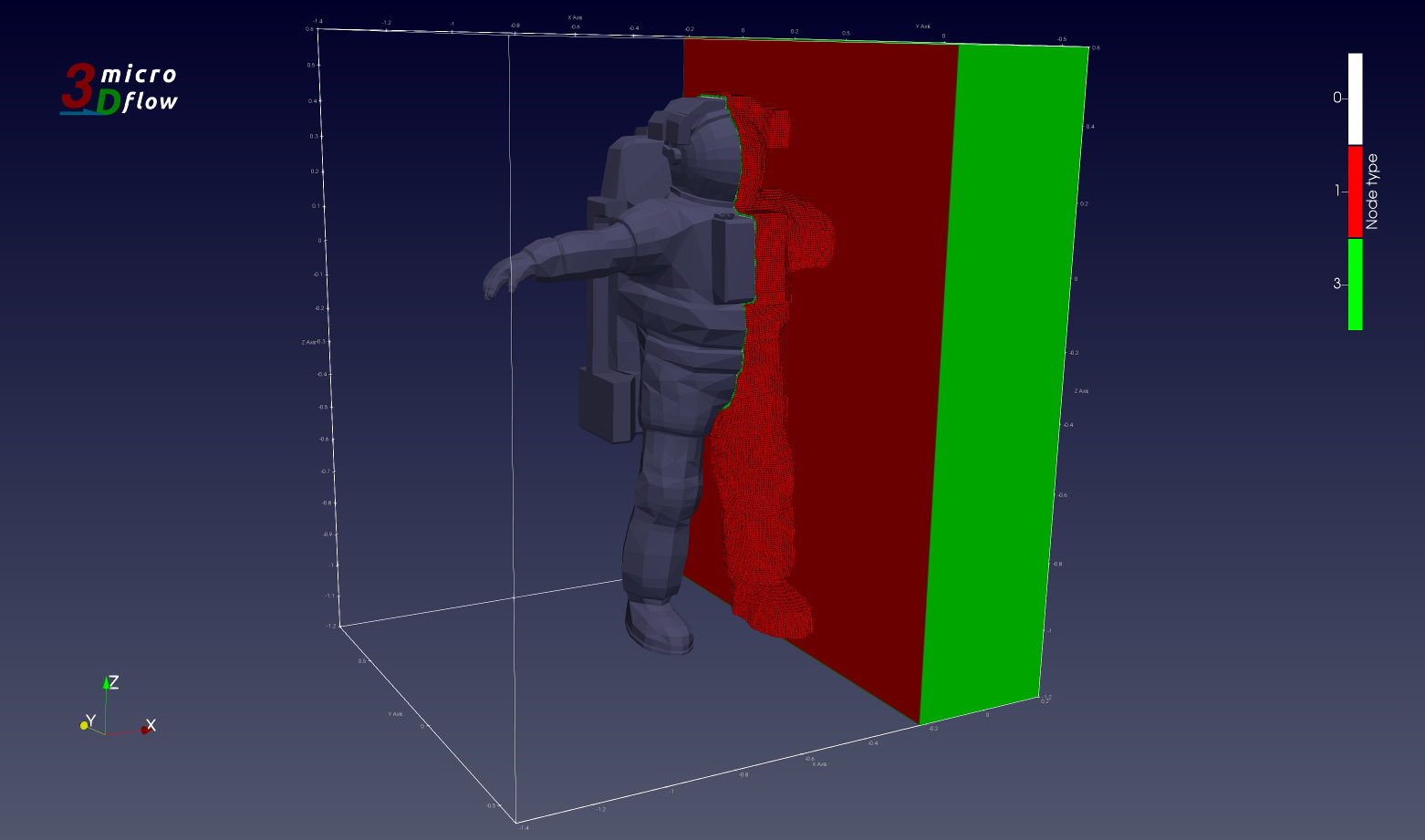

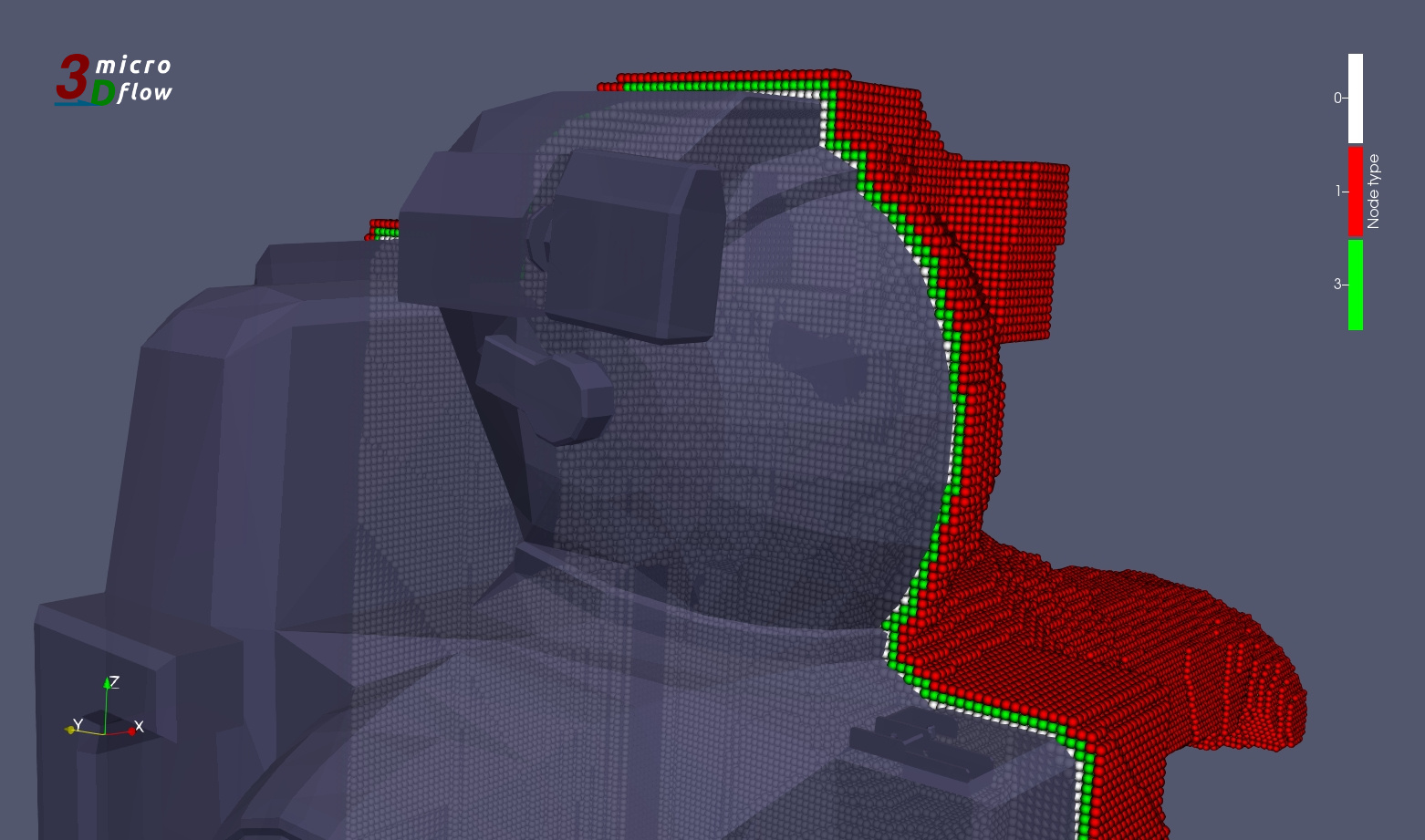

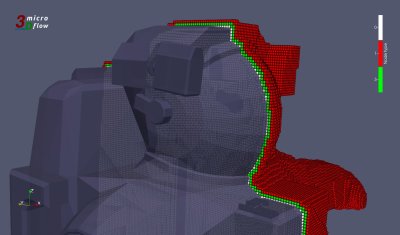

Grid statistics:
Total number of computational nodes = 31 052 073
Number of fluid (1) nodes = 30 260 753
Number of bounce back (61) nodes = 562 278
Number of velocity (20) nodes = 114 521
Number of velocity0 (40) nodes = 0
Number of pressure (30) nodes = 114 521
Number of periodic (4) and (5) nodes = 0
Ratio of non-fluid nodes to total number of computational nodes [%] = 2.54836

Solution parameters:
Re = 600
U_Ch_LB = 0.0166667
Dt_phys [s] = 0.0166667
L_ch_LB [Lu] = 360
Nu_LB = 0.00999999

Solver: Microflow 3D R0.1
Data visualisation software: ParaView v5.6
